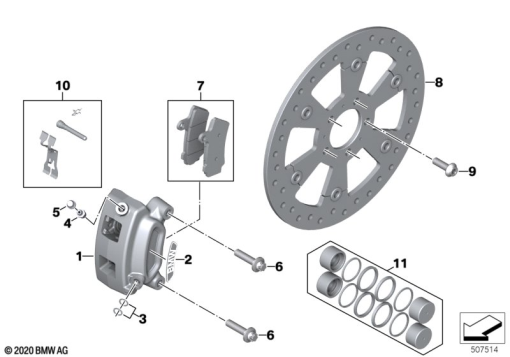

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 9 444 021 | BRAKE CALIPER, REAR - BLACK | - | |
| 2 | 34 11 9 444 617 | BADGE | - | |
| 3 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 4 | 34 21 8 535 153 | VENT SCREW | - | |
| 5 | 34 21 2 314 001 | 34 21 2 314 001 | - | |
| 6 | 34 21 9 480 231 | TORX SCREW - M10X40-10.9 | - | |
| 7 | 34 21 1 542 640 | SET: BRAKE PADS KIT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 7 | - | ||
| 8 | 34 21 8 414 428 | REAR BRAKE DISC - D=300-7.0MM (to 04/22) | - | |
34 21 8 392 568 | REAR BRAKE DISC - D=300-7.0MM (to 04/23)Alternative for position 8 | - | ||
34 21 8 859 061 | BRAKE DISK REAR - D=300-7.0MM (to 08/24)Alternative for position 8 | - | ||
34 21 8 866 100 | REAR BRAKE DISC - D=300-7.0MMAlternative for position 8 | - | ||
| 9 | 07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MK | - | |
| 10 | 34 11 9 444 024 | SET: SET OF MOUNTING PARTS, BRAKE PADS | - | |
| 11 | 34 11 9 444 025 | SET: SET PISTONS WITH GASKET | - |
