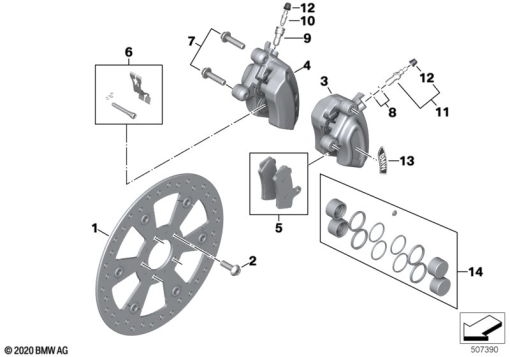

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 8 414 426 | BRAKE ROTOR, FRONT - D=300-5.0MM (to 08/24) | - | |
34 11 8 866 099 | BRAKE ROTOR, FRONT - D=300-5.0MMAlternative for position 1 | - | ||
| 2 | 07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MK | - | |
| 3 | 34 11 9 444 017 | BRAKE CALIPER, LEFT - BLACK | - | |
34 11 9 444 019 | BRAKE CALIPER, LEFT - CHROMEAlternative for position 3 | - | ||
| 4 | 34 11 9 444 018 | CALIPER RIGHT - BLACK | - | |
34 11 9 444 020 | CALIPER RIGHT - CHROMEAlternative for position 4 | - | ||
| 5 | 34 11 9 444 023 | SET: BRAKE PADS KIT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 5 | - | ||
| 6 | 34 11 9 444 024 | SET: SET OF MOUNTING PARTS, BRAKE PADS | - | |
| 7 | 07 12 9 909 585 | FILLISTER-HEAD SCREW - M10X40-10.9 | - | |
| 8 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 9 | 34 32 8 549 328 | VENTILATION BOLT | - | |
| 10 | 34 11 8 520 872 | VENT SCREW | - | |
| 11 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | - | |
| 12 | 34 21 2 314 001 | 34 21 2 314 001 | 2 | |
| 13 | 34 11 9 444 645 | BADGE, LEFT | - | |
34 11 9 444 646 | BADGE, RIGHTAlternative for position 13 | - | ||
| 14 | 34 11 9 444 025 | SET: SET PISTONS WITH GASKET | - |
