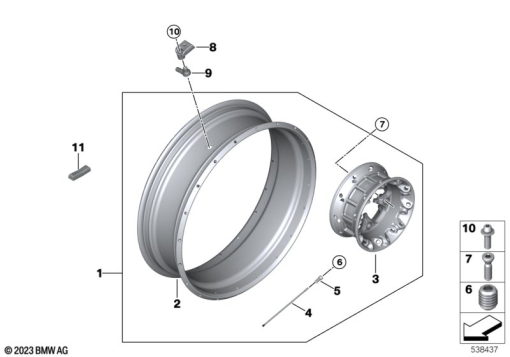

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 7 923 195 | CROSS-SPOKED WHEEL BLACK REAR - 4.5X17 | - | |
36 31 7 923 196 | CROSS-SPOKED WHEEL GOLD REAR - 4.5X17Alternative for position 1 | - | ||
| 2 | 36315A76DA4 | WHEEL, BLACK, REAR - 4.5X17 | - | |
36315A76DA5 | RIM GOLD REAR - 4.5X17Alternative for position 2 | - | ||
| 3 | 36 31 7 923 199 | WHEEL HUB, BLACK, REAR - 4.5X17 | - | |
| 4 | 36 31 8 103 150 | SPOKE REART - L=189MM | - | |
| 5 | 36 31 1 540 421 | NIPPLE - M4 | - | |
| 6 | 07 11 9 906 097 | GRUB SCREW - M4X5 | - | |
| 7 | 36 31 7 673 903 | WHEEL BOLT - M10X1,25X40 | - | |
| 8 | 36 31 7 108 983 | RDC SENSOR - 433 MHZ | - | |
| 9 | 36 31 7 108 181 | ANGLE VALVE | - | |
| 10 | 36 31 9 829 827 | INTERNAL TORX SCREW WITH WASHER - M5 | - | |
| 11 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 11 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 11 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 11 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 11 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 11 | - |
