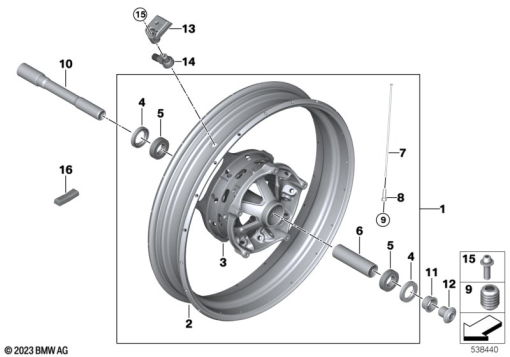

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 7 923 173 | CROSS SPOKE WHEEL BLACK FRONT - 3.0X19 | - | |
36 31 7 923 174 | CROSS-SPOKED WHEEL GOLD FRONT - 3.0X19Alternative for position 1 | - | ||
| 2 | 36315A76DA2 | RIM BLACK FRONT - 3.0X19 | - | |
36315A76DA3 | RIM GOLD FRONT - 3.0X19Alternative for position 2 | - | ||
| 3 | 36 31 7 923 176 | WHEEL HUB BLACK FRONT | - | |
| 4 | 36 31 8 561 711 | SHAFT SEAL - AS30X47X7 | - | |
| 5 | 36 31 8 531 207 | GROOVED BALL BEARING - 25X47 | - | |
| 6 | 36 31 7 923 254 | SPACER BUSHING - D=25.5 L=105 | - | |
| 7 | 36 31 8 103 152 | SPOKE FRONT - L=196MM | - | |
| 8 | 36 31 1 540 421 | NIPPLE - M4 | - | |
| 9 | 07 11 9 906 097 | GRUB SCREW - M4X5 | - | |
| 10 | 36 31 7 107 642 | QUICK-RELEASE AXLE | - | |
| 11 | 36 31 8 544 127 | BUSH | - | |
| 12 | 36 31 8 561 528 | SCREW - M20X1,5 | - | |
| 13 | 36 31 7 108 983 | RDC SENSOR - 433 MHZ | - | |
| 14 | 36 31 7 108 181 | ANGLE VALVE | - | |
| 15 | 36 31 9 829 827 | INTERNAL TORX SCREW WITH WASHER - M5 | - | |
| 16 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 16 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 16 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 16 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 16 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 16 | - |
