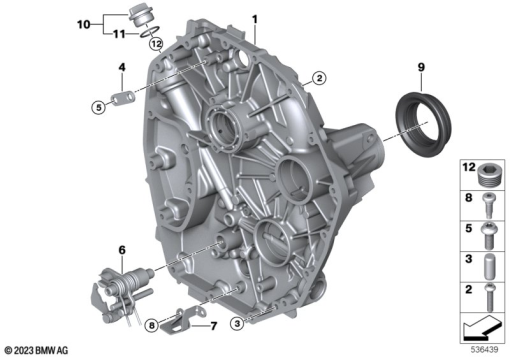

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 7 914 004 | TRANSMISSION COVER - BLACK | 1 | |
| 2 | 07 12 9 908 033 | FILLISTER-HEAD SCREW - M6X30 - 10.9 | 1 | |
| 3 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 | 1 | |
| 4 | 11 14 7 105 396 | CABLE BRACKET | 1 | |
| 5 | 07 12 9 908 404 | FILLISTER-HEAD SCREW - M6X16-8.8 MK | 1 | |
| 6 | 23 00 1 542 906 | SWITCHING UNIT | 1 | |
| 7 | 23 00 1 542 932 | STOP LATCH | 1 | |
| 8 | 16 13 7 704 563 | OVAL HEAD SCREW - M5X14-10.9-ZNS3 | 1 | |
| 9 | 11 14 7 914 462 | RING | 1 | |
| 10 | 11 43 7 715 430 | SET: SET, THREADED OIL PLUG | 1 | |
| 11 | 11 14 8 404 177 | O-RING - 21.5X2-N-FPM | 1 | |
| 12 | 11 12 7 539 543 | SCREW PLUG - M10X1-8.8-ZNNIV | 1 |
