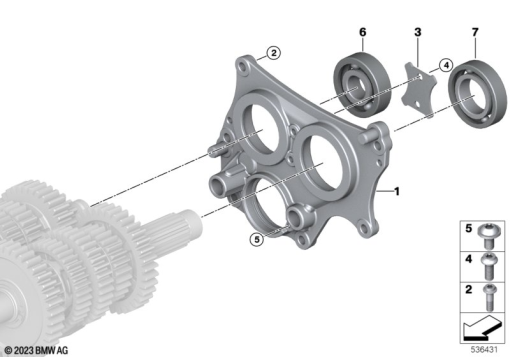

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 1 542 930 | BEARING PLATE | 1 | |
| 2 | 23 00 8 559 263 | ISA SCREW - M7X26-10.9-PHR | 1 | |
| 3 | 23 00 1 542 933 | RETAINING PLATE END SHIELD | 1 | |
| 4 | 07 12 9 908 404 | FILLISTER-HEAD SCREW - M6X16-8.8 MK | 1 | |
| 5 | 07 12 9 909 295 | FILLISTER HEAD SCREW - M4X8 | 1 | |
| 6 | 23 00 1 542 934 | GROOVED BALL BEARING - 20X52X15 | 1 | |
| 7 | 23 00 1 542 935 | GROOVED BALL BEARING - 30X55X13 | 1 |
