R1300GS 22 (KA1) | Rear Axle & Suspension

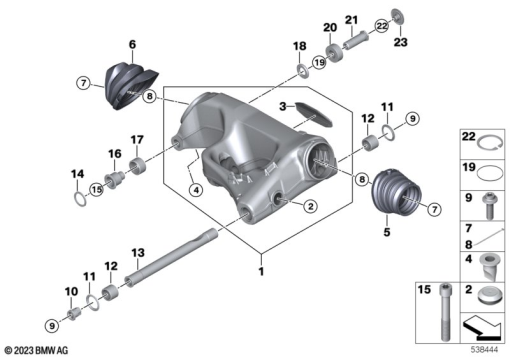

REAR WHEEL SWINGING ARM
Diagram #33_3482 | 23 parts | 5 available in shop
100%
Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 35 7 925 027 | REAR WHEEL SWINGING ARM | 1 | |
| 2 | 33 32 6 786 219 | PLUG | 1 | |
| 3 | 33 35 7 107 672 | COVER | 1 | |
| 4 | 33 17 8 358 789 | VENTILATION VALVE | 1 | |
| 5 | 33 35 7 923 126 | RUBBER BOOT | 1 | |
| 6 | 33 35 7 923 127 | RUBBER BOOT | 1 | |
| 7 | 33 17 7 687 623 | CABLE TIE | 1 | |
| 8 | 07145A7E456 | CABLE STRAP - 3,5X365 | 1 | |
| 9 | 07 14 7 923 125 | SCREW | 1 | |
| 10 | 33 35 7 923 124 | TWIST PROTECTION | 1 | |
| 11 | 33 35 7 915 306 | STOP DISK | 1 | |
| 12 | 31 42 7 665 668 | NEEDLE SLEEVE | 1 | |
| 13 | 33 35 7 923 123 | SWING AXLE | 1 | |
| 14 | 33 11 7 684 996 | GASKET RING - 38X30X2,5 | 1 | |
| 15 | 07 12 9 907 075 | FILLISTER-HEAD SCREW - M12X80-10.9-MK | 1 | |
| 16 | 33 17 7 665 148 | PIVOT PIN | 1 | |
| 17 | 33 11 7 684 640 | NEEDLE SLEEVE | 1 | |
| 18 | 33 35 8 533 293 | SPACER RING | 1 | |
| 19 | 07 11 9 904 693 | O-RING - 34X1 | 1 | |
| 20 | 33 11 7 665 037 | ANGULAR BALL BEARING | 1 | |
| 21 | 33355A65AB4 | PIVOT PIN | 1 | |
| 22 | 07 11 9 905 077 | LOCK RING - 42X1,75 | 1 | |
| 23 | 33 35 8 529 484 | COVERING CAP | 1 |
