R1300GS 22 (KA1) | Rear Axle & Suspension

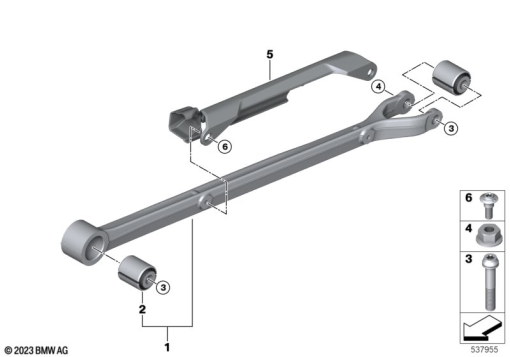

PARALEVER BRACE
Diagram #33_3472 | 6 parts | 1 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 35 7 923 128 | PARALEVER STRUT | 1 | |
| 2 | 33 35 8 382 788 | RUBBER MOUNTING | 1 | |
| 3 | 33 35 8 533 524 | FILLISTER-HEAD SCREW - M10X60-U0-10.9 | 1 | |
| 4 | 77 14 9 908 443 | HEX NUT - M10-10-ZNNIV SI | 1 | |
| 5 | 34 32 7 921 887 | COVER | 1 | |
| 6 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | 1 |
