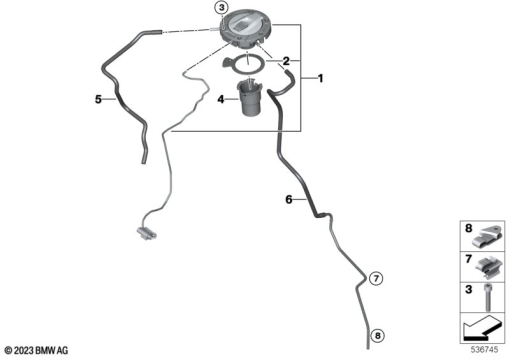

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 9 829 226 | FUEL FILLER CAP | 1 | |
| 2 | 16 11 9 829 227 | SEAL | 1 | |
| 3 | 07 12 9 904 329 | TORX BOLT - M5X28-A2-70 | 1 | |
| 4 | 16 11 9 829 228 | EXTENSION FUEL FILLER NECK - L=70MM | 1 | |
| 5 | 16135B3EA56 | HOSE - TANK-AKF | 1 | |
| 6 | 16 13 1 541 775 | HOSE | 1 | |
| 7 | 61 13 8 535 435 | FIXING CLAMP | 1 | |
| 8 | 16 13 7 106 112 | LINE CLIP | 1 |
