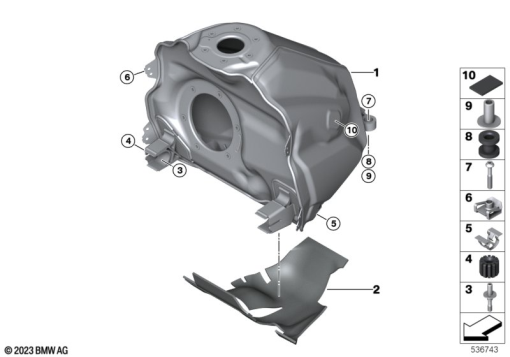

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16115A79077 | FUEL TANK - AURELIUS GREEN | - | |
16115A79076 | FUEL TANK - NIGHT BLACKAlternative for position 1 | - | ||
| 2 | 16 11 7 921 850 | HEAT SHIELD FUEL TANK | - | |
| 3 | 16 11 7 105 878 | PIN FUEL TANK FRONT | - | |
| 4 | 16 11 2 323 615 | BUMP STOP | - | |
| 5 | 46 63 8 406 049 | CLIP | - | |
| 6 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 7 | 07 12 9 907 377 | FILLISTER-HEAD SCREW - M8X50-8.8-ZNNIV | - | |
| 8 | 16 11 2 309 211 | RUBBER MOUNTING | - | |
| 9 | 16 11 7 921 849 | BUSHING | - | |
| 10 | 46 63 9 444 373 | HOOK&LOOP FASTENER - 25X40MM | - |
