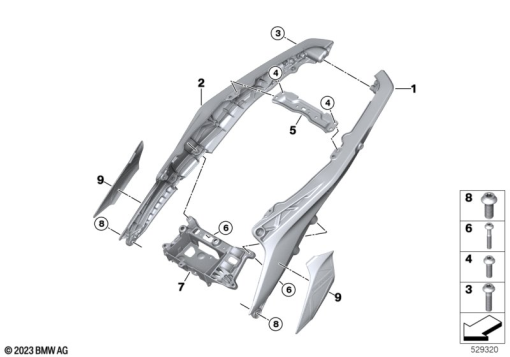

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 7 107 619 | REAR FRAME LEFT - SILVER | - | |
46 71 7 107 623 | REAR FRAME LEFT - WHITEAlternative for position 1 | - | ||
46 71 7 107 621 | REAR FRAME LEFT - BLACKAlternative for position 1 | - | ||
| 2 | 46 71 7 107 620 | REAR FRAME RIGHT - SILVER | - | |
46 71 7 107 624 | REAR FRAME RIGHT - WHITEAlternative for position 2 | - | ||
46 71 7 107 622 | REAR FRAME RIGHT - BLACKAlternative for position 2 | - | ||
| 3 | 07 12 9 908 076 | FILLISTER-HEAD SCREW - M6X20-8-8 MK | - | |
| 4 | 46 71 9 909 301 | FILLISTER-HEAD SCREW - M8X25 10.9 | - | |
| 5 | 46 51 7 923 234 | BRIDGE REAR | - | |
| 6 | 46 71 9 909 302 | FILLISTER-HEAD SCREW - M8X45-10.9 | - | |
| 7 | 46 51 7 923 233 | BRIDGE FRONT | - | |
| 8 | 07 12 9 908 598 | FILLISTER-HEAD SCREW - M10X25-10.9-MK | - | |
| 9 | 46635A70FD9 | COVER FRAME REAR LEFT AND RIGHT | - | |
46 63 7 106 107 | FRAME GUARD REAR LEFTAlternative for position 9 | - | ||
46 63 7 106 108 | FRAME GUARD RIGHT REARAlternative for position 9 | - |
