R1300GS 22 (KA1) | Frame, Fairing, Cases
CENTER STAND

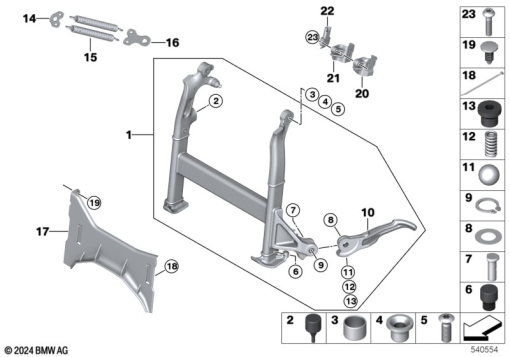

Diagram #46_2552 | 26 parts | 8 available in shop
100%
Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 1 633 821 | CENTER STAND | 1 | |
| 1 | 46 52 1 635 308 | CENTER STAND | 1 | |
| 1 | 46 52 1 633 831 | CENTER STAND | 1 | |
| 2 | 46 52 8 536 805 | BUMP STOP - H=15 | 1 | |
| 3 | 46 53 7 702 153 | PLAIN BEARING | 1 | |
| 4 | 46 52 8 549 889 | SPACER BUSH | 1 | |
| 5 | 07 11 9 906 134 | COUNTERSUNK HEAD SCREW - M10X30-8.8-MK | 1 | |
| 6 | 31 42 8 537 724 | STOP BUFFER - 7,5X12 | 1 | |
| 7 | 46 52 7 105 984 | 46 52 7 105 984 | 1 | |
| 8 | 07 14 7 701 307 | WASHER - 13,5X24X0,5 | 1 | |
| 9 | 46525A837B0 | CIRCLIP | 1 | |
| 10 | 46 52 7 105 980 | CANTILEVER ARM | 1 | |
| 10 | 46 52 7 105 981 | CANTILEVER ARM | 1 | |
| 11 | 07 11 9 905 155 | BALL - 6,35MM | 1 | |
| 12 | 46 71 8 392 689 | COMPRESSION SPRING | 1 | |
| 13 | 11 11 9 904 549 | SCREW PLUG - M10X1-ZNNIV SI | 1 | |
| 14 | 46 52 1 636 084 | SPRING SUPPORT SHORT | 1 | |
| 15 | 46525A6A914 | TENSION SPRING | 1 | |
| 16 | 46 52 1 636 087 | SPRING SUPPORT LONG | 1 | |
| 17 | 46 63 7 923 820 | COVER FOR CENTER STAND | 1 | |
| 18 | 16 13 1 465 035 | CABLE TIE | 1 | |
| 19 | 51 35 7 019 030 | PLUG - D=5MM | 1 | |
| 20 | 46 52 7 105 986 | HOLDER, MICROSWITCH | 1 | |
| 21 | 61135A63B50 | BRACKET PLUG TERMINAL | 1 | |
| 22 | 32 72 8 537 608 | SET: SET OF MICROSWITCHES | 1 | |
| 23 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | 1 |
