R1300GS 22 (KA1)
Frame, Fairing, Cases
MUDGUARD REAR
R1300GS 22 (KA1) | Frame, Fairing, Cases

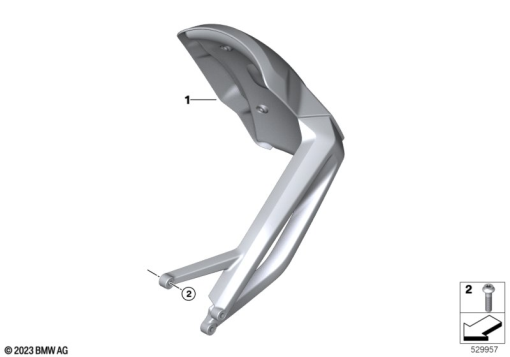

MUDGUARD REAR
Diagram #46_2578 | 2 parts
34 diagrams in Frame, Fairing, Cases
100%
Download
Parts List (2)
#
Part Number
Description
Qty
1
46 62 7 107 875
SPRAY GUARD, REAR
1
2
07 12 9 909 321
FILLISTER-HEAD SCREW - M6X25-8.8-MK
1
