R1300GS 22 (KA1) | Frame, Fairing, Cases

HEEL DEFLECTOR

Diagram #46_2579 | 3 parts

100%

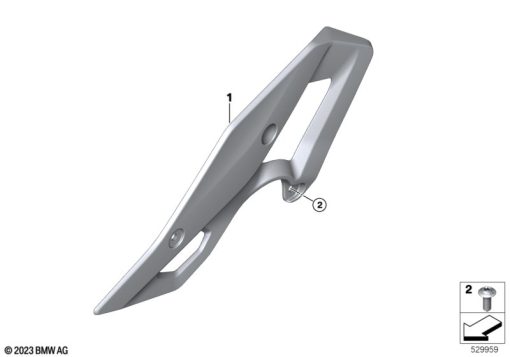

R1300GS 22 (KA1) HEEL DEFLECTOR exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 71 7 923 223
HEEL GUARD, LEFT1
1
46 71 7 923 224
HEEL GUARD, RIGHT1
2
61 31 8 547 664
BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK1
