R1300GS 22 (KA1) | Frame, Fairing, Cases

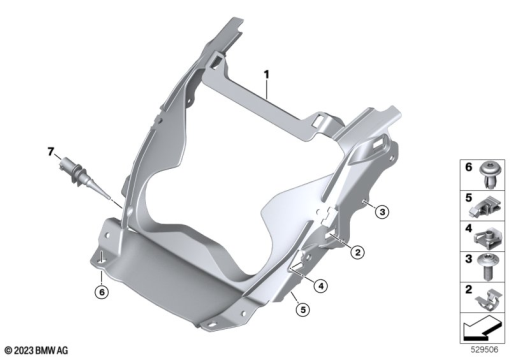

HEADLIGHT COVER
Diagram #46_2561 | 7 parts | 1 available in shop
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 1 541 514 | COVER HEADLIGHT | 1 | |
| 2 | 46 63 8 406 049 | CLIP | 1 | |
| 3 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 4 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 5 | 61 13 6 916 946 | CABLE STRAP WITH BRACKET - L=200MM | 1 | |
| 6 | 07145A42E91 | EXPANDING RIVET | 1 | |
| 7 | 65 81 6 936 953 | OUTSIDE TEMPERATURE SENSOR | 1 |
