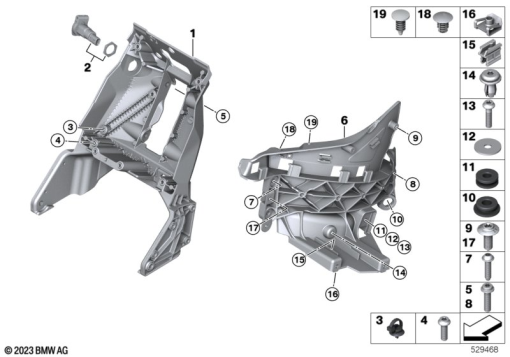

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46635A64994 | FRONT PANEL CARRIER | 1 | |
| 2 | 61 34 7 714 741 | PLUG-IN SOCKET | 1 | |
| 3 | 61 13 7 709 309 | CABLE STRAP WITH BRACKET | 1 | |
| 4 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 5 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | 1 | |
| 6 | 46 63 1 541 491 | FRONT PANEL CARRIER LEFT | 1 | |
| 6 | 46 63 1 541 492 | FRONT PANEL CARRIER RIGHT | 1 | |
| 7 | 07 14 9 166 528 | OVAL-HEAD SCREW, SELF-TAPPING - M6X25-ZNNIV-SI | 1 | |
| 8 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | 1 | |
| 9 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 10 | 46 63 8 527 151 | GROMMET | 1 | |
| 11 | 46 63 1 451 277 | RUBBER GROMMET | 1 | |
| 12 | 07 14 9 151 606 | WASHER - 6,4-25-1,5MM | 1 | |
| 13 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | 1 | |
| 14 | 07145A42E91 | EXPANDING RIVET | 1 | |
| 15 | 61 13 8 038 489 | PLUG-IN CONNECTION BRACKET | 1 | |
| 16 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 17 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 18 | 52 10 7 075 000 | PLUG - D=5MM | 1 | |
| 19 | 51 71 8 195 651 | PLUG - D=4,00 MM | 1 |
