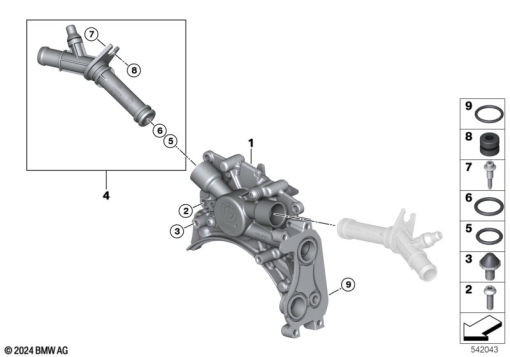

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 51 7 105 305 | COOLANT PUMP | 1 | |
| 2 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 3 | 11515A6F9C9 | DECOUPLING ELEMENT | 1 | |
| 4 | 11 51 7 105 310 | COOLANT CONNECTION FITTING | 1 | |
| 5 | 11 51 7 105 312 | O-RING - 18X3 FPM 70 | 1 | |
| 6 | 07 11 9 909 869 | O-RING - 20X3-N-FPM 70 | 1 | |
| 7 | 07 14 7 914 891 | COLLAR SCREW - M5 | 1 | |
| 8 | 62 21 7 670 749 | RUBBER GROMMET - 8X18X12MM | 1 | |
| 9 | 11 51 8 545 717 | O-RING | 1 |
