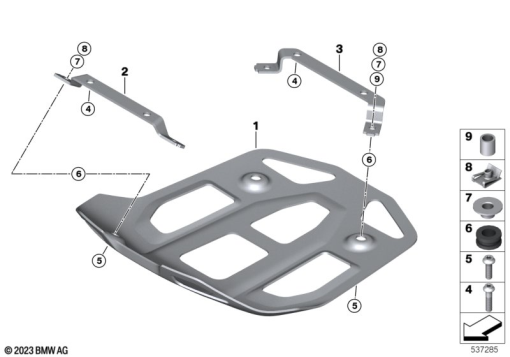

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11845A64A33 | ENGINE GUARD | - | |
| 2 | 11845A64A34 | HOLDER SKID PLATE FRONT | - | |
| 3 | 11845A64A35 | HOLDER SKID PLATE REAR | - | |
| 4 | 07 12 9 907 383 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNNIV | - | |
| 5 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 6 | 13 53 1 341 283 | GROMMET | - | |
| 7 | 11 84 8 544 832 | BUSH | - | |
| 8 | 07 14 7 693 887 | C-CLIP NUT - M6 | - | |
| 9 | 51 16 7 128 071 | SLEEVE | - |
