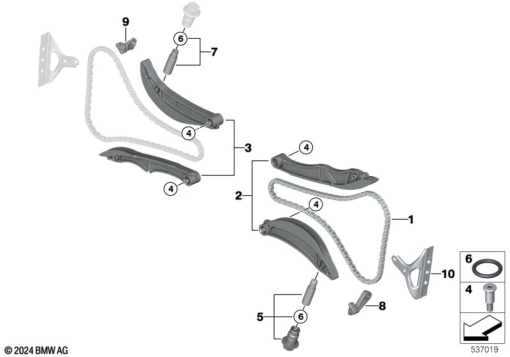

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 31 9 830 159 | TIMING CHAIN | - | |
| 2 | 11315A8F4D5 | SET: KIT TIMING-CHAIN RAILS LEFT | - | |
| 3 | 11315A8F4D6 | SET: KIT TIMING-CHAIN RAILS RIGHT | - | |
| 4 | 11 31 9 830 165 | AXLE CHAIN GUARD | - | |
| 5 | 11315A8F4D3 | SET: SET CHAIN TENSIONER LEFT | - | |
| 6 | 12 14 1 748 398 | O-RING - 17X3 | - | |
| 7 | 11315A9D096 | SET: KIT CHAIN TENSIONER RIGHT | - | |
| 8 | 11 31 9 446 124 | JUMP GUARD LEFT | - | |
| 9 | 11 31 9 446 123 | JUMP GUARD RIGHT | - | |
| 10 | 11 31 7 108 636 | HOLDER SLIDE RAIL | - | |
11315A995E9 | HOLDERAlternative for position 10 | - |
