R1300GS 22 (KA1) | Engine

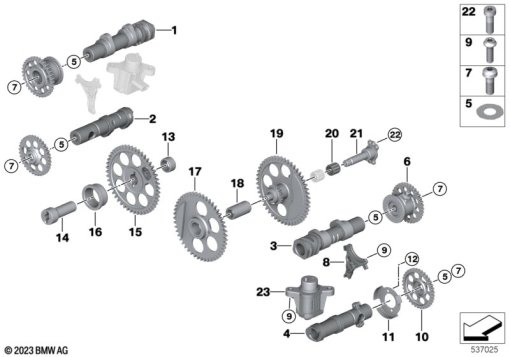

CAMSHAFT, PULLEY, INTERMEDIATE SHAFT
Diagram #11_9836 | 24 parts | 2 available in shop
100%
Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11315A970E8 | NOCKENWELLE EINLASS RIGHT - W264 | 1 | |
| 2 | 11 31 9 446 108 | EXHAUST CAMSHAFT, RIGHT - W258 | 1 | |
| 3 | 11 31 9 446 105 | INTAKE CAMSHAFT, LEFT - W264 | 1 | |
| 4 | 11 31 9 446 107 | EXHAUST CAMSHAFT, LEFT - W258 | 1 | |
| 5 | 11 31 7 914 889 | FOLIE | 1 | |
| 6 | 11 31 9 830 185 | CAMSHAFT SPROCKET INTAKE CAMSHAFT | 1 | |
| 7 | 11 31 7 720 722 | CENTRAL SCREW | 1 | |
| 8 | 11 31 9 830 175 | BEARING | 1 | |
| 9 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 10 | 11 31 9 830 173 | CAMSHAFT SPROCKET EXHAUST CAMSHAFT | 1 | |
| 11 | 11 31 9 830 184 | GEBERRAD | 1 | |
| 12 | 07 12 9 904 838 | ISA SCREW - M4X8-8.8 | 1 | |
| 13 | 11 31 9 830 170 | NEEDLE BEARING | 1 | |
| 14 | 11 31 9 830 169 | DRIVE SHAFT | 1 | |
| 15 | 11 31 9 830 168 | DRIVE WHEEL | 1 | |
| 16 | 11 31 7 108 634 | SUPPORT | 1 | |
| 17 | 11 27 7 923 790 | GEAR FRONT | 1 | |
| 18 | 11 27 7 923 789 | AXLE | 1 | |
| 19 | 11 27 7 923 797 | GEAR WHEEL | 1 | |
| 20 | 11 27 7 923 798 | NEEDLE BEARING - K12X18X16 | 1 | |
| 21 | 11 27 7 923 796 | AXLE | 1 | |
| 22 | 07 12 9 909 915 | ISA SCREW - M5X16-10.9-MKL | 1 | |
| 22 | 07145B581C5 | ISA SCREW | 1 | |
| 23 | 13 63 1 543 108 | EXHAUST CAMSHAFT ADJUSTER SWITCH CAM | 1 |
