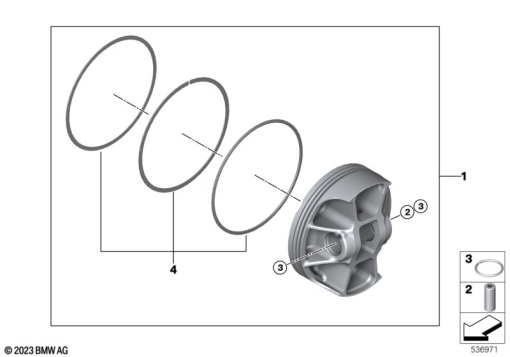

PISTON WITH RINGS AND WRISTPIN
R1300GS 22 (KA1) | Engine
PISTON WITH RINGS AND WRISTPIN
Diagram #11_9831 | 4 parts
22 diagrams in Engine
100%
Download
Parts List (4)
#
Part Number
Description
Qty
1
11 25 7 923 768
PISTON
-
2
11 25 7 923 767
GUDGEON PIN - 20/9X49
-
3
07 14 7 923 763
LOCK RING
-
4
11 25 7 923 769
SET: PISTON RINGS - D=106,5
-
