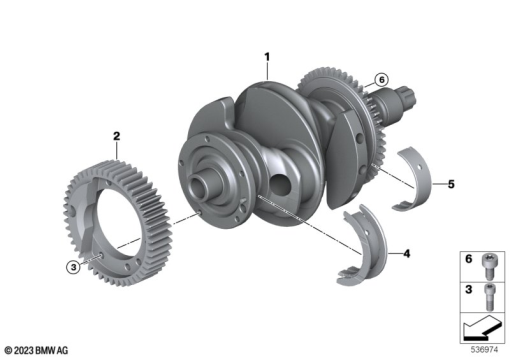

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 7 923 711 | CRANKSHAFT | - | |
| 2 | 11 21 7 923 709 | GEAR WHEEL | - | |
| 3 | 07 12 9 909 886 | ISA SCREW - M6X20-12.9-PHR | - | |
| 4 | 11 21 7 923 727 | BEARING SHELL GUIDE BEARING - YELLOW | - | |
11 21 7 923 728 | BEARING SHELL GUIDE BEARING - GRÜNAlternative for position 4 | - | ||
11 21 7 923 729 | BEARING SHELL GUIDE BEARING - VIOLETTAlternative for position 4 | - | ||
| 5 | 11 21 7 923 723 | BEARING SHELL MAIN BEARING - YELLOW | - | |
11 21 7 923 724 | BEARING SHELL MAIN BEARING - GRÜNAlternative for position 5 | - | ||
11 21 7 923 725 | BEARING SHELL MAIN BEARING - VIOLETTAlternative for position 5 | - | ||
| 6 | 07 14 7 923 718 | CHEESE HEAD SCREW - M8X18-12.9-PHR | - |
