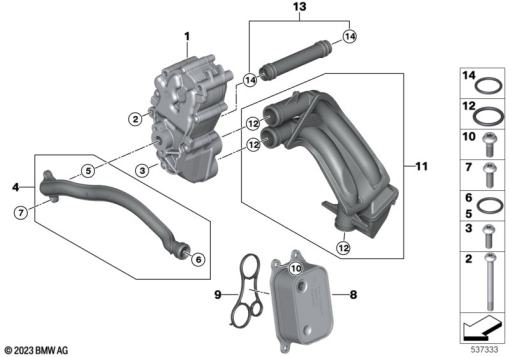

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11415A7B5F1 | OIL PUMP | - | |
| 2 | 07 12 9 907 395 | CHEESE HEAD SCREW - M6X65-8.8-ZNNIV | - | |
| 3 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 4 | 11 41 7 105 357 | OIL PIPE | - | |
| 5 | 11 12 7 689 563 | O-RING - 16X2 | - | |
| 6 | 13 53 7 671 545 | O-RING - 16X3 | - | |
| 7 | 07 12 9 907 412 | FILLISTER-HEAD SCREW - M5X16-8.8-ZNNIV | - | |
| 8 | 11 41 7 105 306 | HEAT EXCHANGER | - | |
| 9 | 11 41 7 108 027 | SEAL HEAT EXCHANGER | - | |
| 10 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 11 | 11 41 7 105 317 | OIL INTAKE SNORKEL | - | |
| 12 | 11 42 8 404 176 | O-RING - 23X3 | - | |
| 13 | 11415A758E5 | PIPE | - | |
| 14 | 12 72 7 694 010 | O-RING - 17X2 | - |
