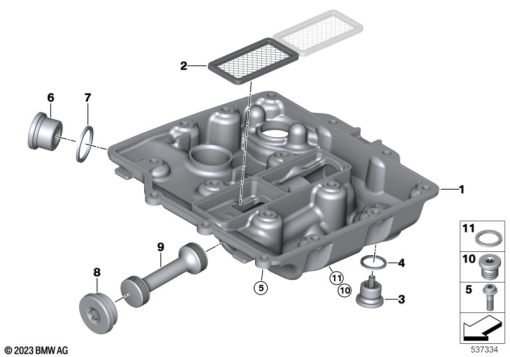

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 13 7 105 359 | OIL PAN | - | |
| 2 | 11 13 7 105 360 | OIL STRAINER | - | |
| 3 | 11 13 8 536 827 | OIL DRAIN PLUG - M16X1.5 | - | |
| 4 | 07 11 9 963 252 | GASKET RING - A16X20-AL | - | |
| 5 | 11 14 7 678 478 | ISA SCREW - M6X20 | - | |
| 6 | 07 11 9 909 888 | SCREW PLUG - M24X1,5-ISR-AL3 | - | |
| 7 | 07 11 9 963 384 | GASKET RING - A24X29-AL | - | |
| 8 | 07 14 7 914 740 | SCREW PLUG - M28X1.5 | - | |
| 9 | 11 13 7 914 999 | CONTROL PISTON | - | |
| 10 | 11 12 8 551 865 | SCREW PLUG - M10X1 AL | - | |
| 11 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | - |
