R1300GS 22 (KA1) | Engine Electrics

VOLTAGE REGULATOR

Diagram #12_2259 | 4 parts

100%

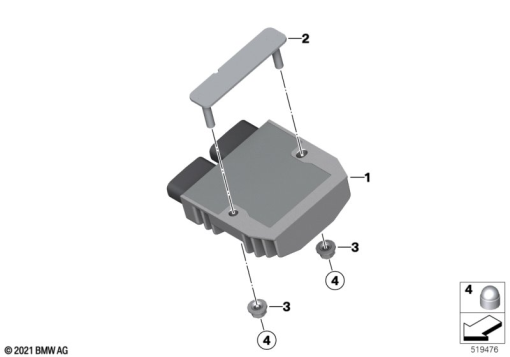

R1300GS 22 (KA1) VOLTAGE REGULATOR exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
12 31 9 467 618
VOLTAGE REGULATOR - FH027AB1
2
12315A87B27
BRACKET, GENERATOR REGULATOR1
3
07 14 6 778 500
HEX NUT WITH PLATE - M6 Z11
4
46 62 1 453 668
PROTECTIVE CAP FOR B+ - M61
