R1300GS 22 (KA1) | Engine Electrics

IGNITION COIL/SPARK PLUG

Diagram #12_1739 | 2 parts

100%

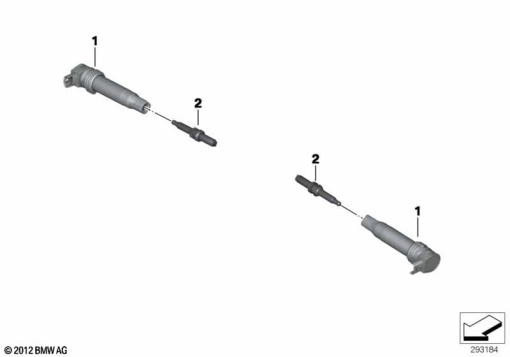

R1300GS 22 (KA1) IGNITION COIL/SPARK PLUG exploded view parts diagram

Parts List (2)

#Part NumberDescriptionQty
1
12 13 8 567 157
IGNITION COIL - 58MJ1
2
12 12 8 560 811
SPARK PLUG - NGK LMAR8AI-101
