R1300GS 22 (KA1) | Engine Electrics

STARTER

Diagram #12_3165 | 5 parts

100%

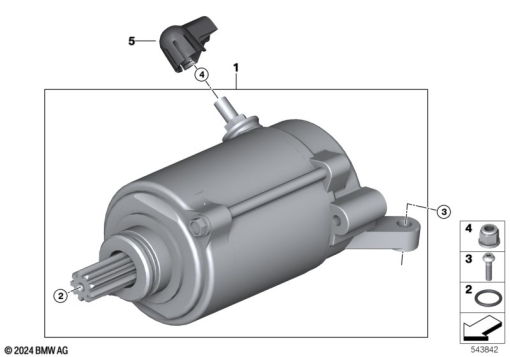

R1300GS 22 (KA1) STARTER exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
12 41 1 603 429
STARTER MOTOR1
2
12415B32EE8
O-RING1
3
07 12 9 907 401
ISA SCREW - M6X25-8.8-ZNNIV1
4
07 12 9 905 542
HEX NUT WITH PLATE - AM6-8-ZNNIV SI1
5
61 13 7 704 173
PROTECTION CAP1
