R1300GS 22 (KA1) | Engine Electrics

OIL-LEVEL SENSOR

Diagram #12_3166 | 4 parts

100%

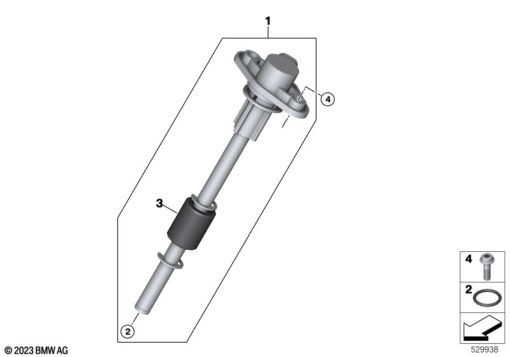

R1300GS 22 (KA1) OIL-LEVEL SENSOR exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
12 61 1 542 971
OIL-LEVEL SENSOR1
2
07 11 9 909 911
O-RING - 20,29X2,621
3
13 62 7 697 763
FLOAT1
4
11 14 7 678 478
ISA SCREW - M6X201
