R1300GS 22 (KA1) | Engine Electrics

CONDUIT FOR ENGINE

Diagram #12_3144 | 4 parts

100%

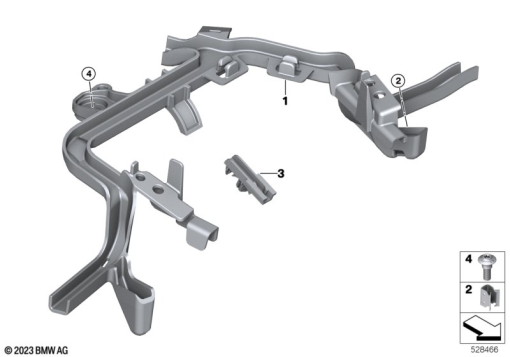

R1300GS 22 (KA1) CONDUIT FOR ENGINE exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
12 51 9 830 115
CONDUIT FOR ENGINE1
2
61 13 8 545 036
CLAMP1
3
61 13 7 713 658
PLUG-IN CONNECTION BRACKET1
4
46 63 8 521 653
BODY SCREW WITH SHOULDER - M5X14,5-A2-701
