R1300GS 22 (KA1) | Electrical System

CONTROL UNIT SUPPORT

Diagram #61_8375 | 3 parts

100%

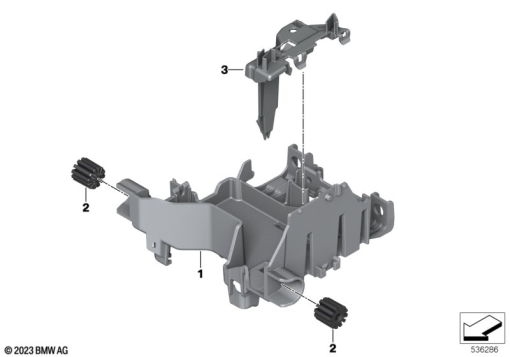

R1300GS 22 (KA1) CONTROL UNIT SUPPORT exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
61 35 9 830 119
CONTROL UNIT SUPPORT1
2
61 35 9 446 016
RUBBER BUFFER1
3
61 35 7 922 055
HOLD-DOWN DEVICE1
