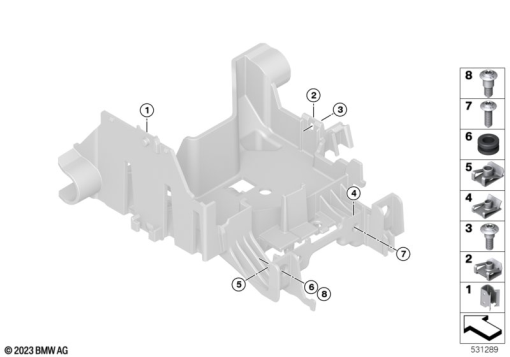

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 8 545 036 | CLAMP | 1 | |
| 2 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 3 | 46 63 8 521 654 | BODY SCREW WITH SHOULDER - M5X17,5-A2-70 | 1 | |
| 4 | 07 14 7 693 887 | C-CLIP NUT - M6 | 1 | |
| 5 | 07 14 9 118 815 | C-CLIP NUT - M6 | 1 | |
| 6 | 34 51 8 537 512 | GROMMET | 1 | |
| 7 | 46 63 8 527 781 | BODY SCREW WITHOUT SHOULDER - M6X20 | 1 | |
| 8 | 46 63 8 521 658 | BODY SCREW WITH SHOULDER - M6 | 1 |
