R1300GS 22 (KA1) | Electrical System

BRACKET PLUG TERMINAL

Diagram #61_8585 | 2 parts

100%

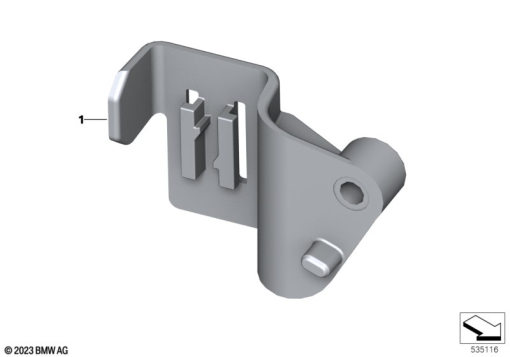

R1300GS 22 (KA1) BRACKET PLUG TERMINAL exploded view parts diagram

Parts List (2)

#Part NumberDescriptionQty
1
61135A63B50
BRACKET PLUG TERMINAL1
1
07 12 9 907 401
ISA SCREW - M6X25-8.8-ZNNIV1
