R1300GS 22 (KA1) | Electrical System

BRACKET

Diagram #61_8582 | 3 parts

100%

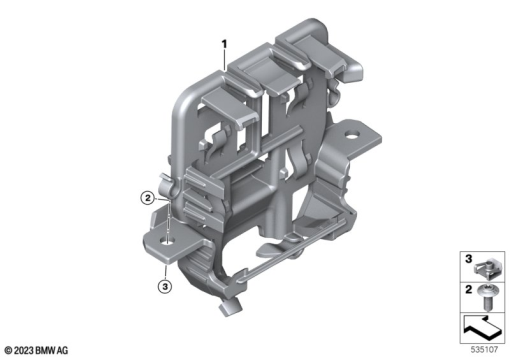

R1300GS 22 (KA1) BRACKET exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
61 35 9 830 120
HOLDER1
2
46 63 8 534 938
BODY SCREW WITHOUT SHOULDER - M5X14-A2-701
3
46 63 8 532 314
C-CLIP NUT, SELF-LOCKING - M51
