R1300GS 22 (KA1) | Cooling

EXPANSION TANK

Diagram #17_2162 | 5 parts

100%

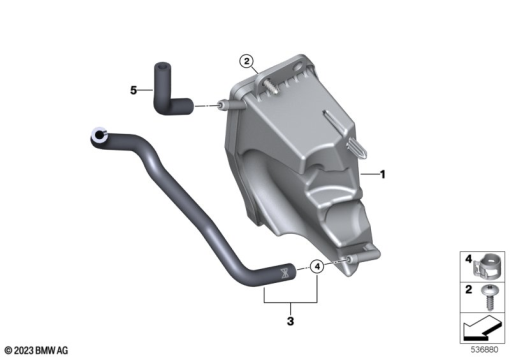

R1300GS 22 (KA1) EXPANSION TANK exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
17 12 1 542 100
EXPANSION TANK1
2
17 11 7 672 755
MOUNTING SCREW - 5,5X181
3
17 12 1 542 093
OVERFLOW HOSE1
4
17 12 7 523 358
SPRING RING SHELL - D=14MM1
5
17 12 1 542 099
VENT HOSE1
