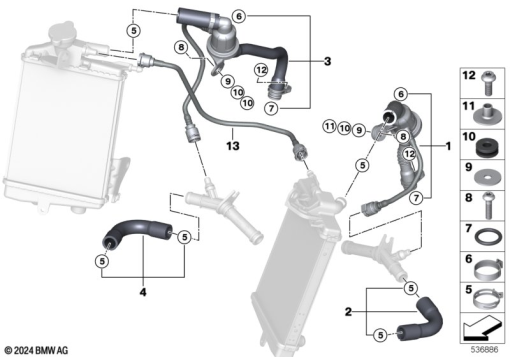

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 65 7 924 075 | THERMOSTAT LEFT | - | |
| 2 | 17 12 1 542 096 | KÜHLMITTELSCHLAUCH RÜCKLAUF - LEFT | - | |
| 3 | 17 65 7 924 076 | THERMOSTAT RIGHT | - | |
| 4 | 17 12 1 542 097 | KÜHLMITTELSCHLAUCH RÜCKLAUF - RIGHT | - | |
| 5 | 17 12 7 594 645 | HOSE CLAMP - 25-28 | - | |
| 6 | 11 63 1 716 970 | HOSE CLAMP - 23,9-27,1 | - | |
| 7 | 11 11 7 665 874 | GASKET RING - 17X3 | - | |
| 8 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | - | |
| 9 | 07 14 9 151 606 | WASHER - 6,4-25-1,5MM | - | |
| 10 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 11 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 12 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 13 | 17 12 1 542 098 | VENT HOSE | - |
