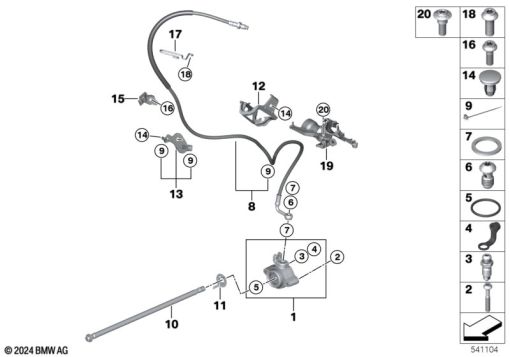

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 7 105 744 | CLUTCH SLAVE CYLINDER | - | |
| 2 | 07 12 9 907 398 | FILLISTER-HEAD SCREW - M6X40-8.8-ZNNIV | - | |
| 3 | 32 72 7 695 221 | VENT SCREW - M5X1 | - | |
| 4 | 32 72 7 695 222 | DUST CAP | - | |
| 5 | 21 52 7 714 159 | O-RING - 38X2 | - | |
| 6 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | - | |
| 7 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 8 | 32 72 7 105 743 | CLUTCH LINE | - | |
| 9 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 10 | 21 52 7 923 967 | PUSHROD CLUTCH | - | |
| 11 | 21 52 1 622 486 | CLIP RETAINER | - | |
| 12 | 32725A67224 | HOLDER | - | |
| 13 | 32725A67225 | HOLDER | - | |
| 14 | 07 14 7 136 172 | EXPANDING RIVET | - | |
| 15 | 32 72 7 106 103 | HOLDER | - | |
| 16 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 17 | 32 72 7 105 872 | GUIDE STRAP | - | |
| 18 | 07 12 9 907 413 | TORX SCREW - M5X12-8.8-ZNNIV | - | |
| 19 | 32 72 7 106 102 | HOLDER | - | |
| 20 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | - |
