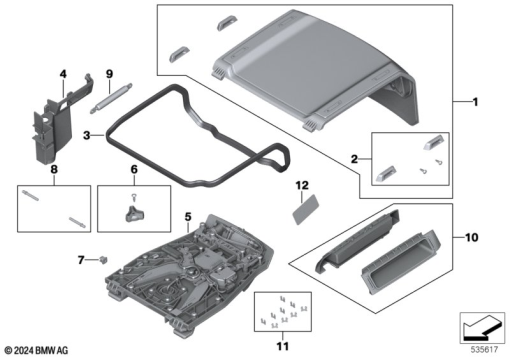

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77415A762F4 | TOP CASE COVER | - | |
| 2 | 77315A762E7 | SET: KIT, EYE, TOPCASE | - | |
| 3 | 77435A6ECF2 | SEAL, TOPCASE LID | - | |
| 4 | 77435A6DA63 | CONDUIT, UPPER | - | |
| 5 | 77315A762F3 | SET: KIT, TOPCASE BOTTOM | - | |
| 6 | 77415A985D0 | SET: KIT, HANDWHEEL, CASE/TOPCASE | - | |
| 7 | 77435A6ECE1 | SEAL, WIRING HARNESS | - | |
| 8 | 77315A762E5 | SET: KIT, HINGE BOLTS | - | |
| 9 | 77315A762E6 | SET: KIT, GAS PRESSURE SPRING | - | |
| 10 | 77315A762E8 | SET: KIT, HANDLE RECESS | - | |
| 11 | 77315A762F1 | SET: KIT, BRACE | - | |
| 12 | 71215A73C23 | INFORMATION LABEL CASE/TOPCASE | - |
