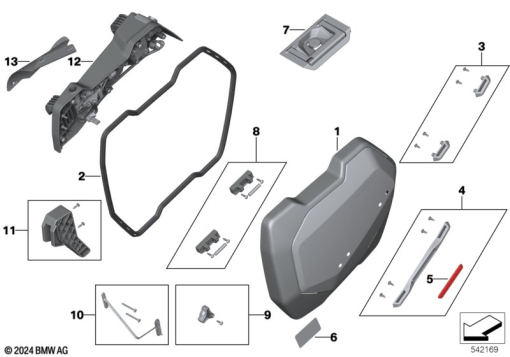

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77415A762C7 | CASE LID, LEFT | - | |
77415A762C8 | CASE LID, RIGHTAlternative for position 1 | - | ||
| 2 | 77415A6D223 | GASKET, CASE LID | - | |
| 4 | 77415A985D5 | SET: KIT, REFLECTOR, LEFT | - | |
77415A985D6 | SET: KIT, REFLECTOR, RIGHTAlternative for position 4 | - | ||
| 5 | 63145A647C1 | REAR REFLECTOR RED | - | |
| 6 | 71215A73C23 | INFORMATION LABEL CASE/TOPCASE | - | |
| 7 | 77315A762E1 | SET: KIT, CARRYING HANDLE, LEFT | - | |
77315A762E2 | SET: KIT, CARRYING HANDLE, RIGHTAlternative for position 7 | - | ||
| 8 | 77315A762D5 | SET: KIT, HINGE, LEFT | - | |
77315A762D6 | SET: KIT, HINGE, RIGHTAlternative for position 8 | - | ||
| 9 | 77415A985D0 | SET: KIT, HANDWHEEL, CASE/TOPCASE | - | |
| 10 | 77315A762C6 | SET: KIT, RETAINING STRAP | - | |
| 11 | 77415A79743 | SET: KIT, MOUNT, LEFT | - | |
77415A79744 | SET: KIT, MOUNT, RIGHTAlternative for position 11 | - | ||
| 12 | 77315A762E3 | SET: KIT, CASE FLOOR, LEFT | - | |
77315A762E4 | SET: KIT, CASE FLOOR, RIGHTAlternative for position 12 | - | ||
| 13 | 77415A9D5B6 | HEAT SHIELD RIGHT | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
