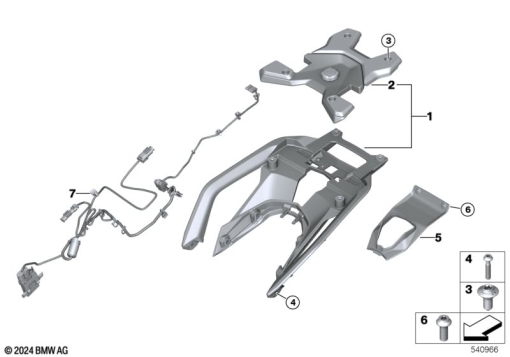

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77445A9D5E7 | SET: KIT, TOPCASE CARRIER | - | |
| 2 | 46 54 8 101 196 | KIT, TOP CASE CARRIER | - | |
| 3 | 46 63 8 521 656 | BODY SCREW WITH SHOULDER - M6X14,5-A2-70 | - | |
| 4 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | - | |
| 5 | 46 62 7 107 863 | COVER, TOPCASE CARRIER | - | |
| 6 | 07 12 9 907 413 | TORX SCREW - M5X12-8.8-ZNNIV | - | |
| 7 | 77535A86318 | SET: KIT ELECTRICAL SYSTEM TOPCASE | - | |
| - | 61 13 7 105 931 | RETAINING CLIP CONNECTOR HOUSING | - | |
| - | 61 13 9 152 083 | MOUNT FOR ASD PLUG CONNECTION | - | |
| 7 | 77535A86319 | SET: KIT ELECTRICAL SYSTEM CASE/TOPCASE | - | |
| - | 61 13 7 105 931 | RETAINING CLIP CONNECTOR HOUSING | - | |
| - | 61 13 9 152 083 | MOUNT FOR ASD PLUG CONNECTION | - |
