R1300GS 22 (KA1) | Accessories

CASE, INSIDE POCKET

Diagram #77_1616 | 3 parts

100%

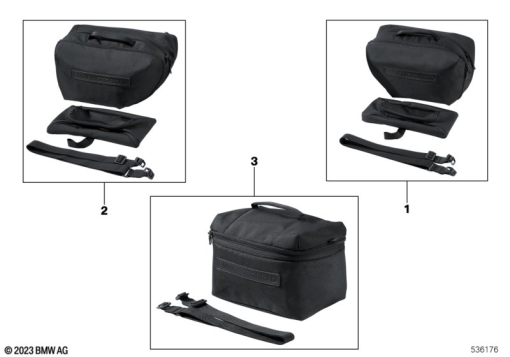

R1300GS 22 (KA1) CASE, INSIDE POCKET exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
77415A6ED24
SET: INSIDE POCKET FOR VARIO CASE, LEFT1
2
77415A6ED27
SET: INSIDE POCKET FOR VARIO CASE, RIGHT1
3
77435A6ED29
SET: INNER POCKET FOR VARIO TOP CASE1
