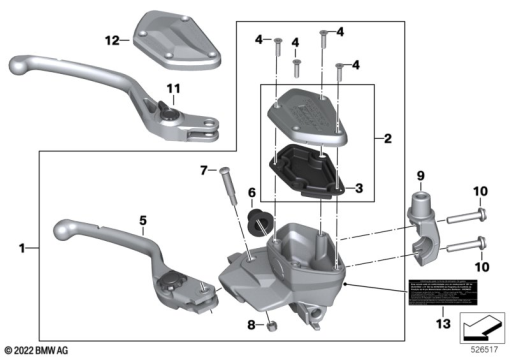

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 8 559 604 | HANDBRAKE LEVER | - | |
32 72 8 559 604 | HANDBRAKE LEVERAlternative for position 1 | - | ||
32 72 7 923 888 | LID BRAKE FLUID RESERVOIR - SHADOWAlternative for position 1 | - | ||
32 72 9 829 546 | BRAKE LEVER - SHADOWAlternative for position 1 | - | ||
32 72 8 559 604 | HANDBRAKE LEVERAlternative for position 1 | - | ||
32 72 7 923 884 | COVER PANEL FOR BRAKE FLUID RESERVOIR - STORMAlternative for position 1 | - | ||
32 72 8 405 750 | BRAKE LEVER - STORMAlternative for position 1 | - | ||
32 72 8 559 604 | HANDBRAKE LEVERAlternative for position 1 | - | ||
32 72 7 923 882 | COVER PANEL FOR BRAKE FLUID RESERVOIR - CLASSICAlternative for position 1 | - | ||
32 72 8 405 749 | BRAKE LEVER - CLASSICAlternative for position 1 | - | ||
| 2 | 32 72 8 555 344 | SET: SET OF CAPS, FLUID RESERVOIR, BRAKES | - | |
| 3 | 32 72 8 532 636 | BOOT | - | |
| 4 | 32 72 8 543 109 | COUNTERSUNK SCREW - M4X16 ZNNIV | - | |
| 5 | 32 72 8 533 739 | HANDBRAKE LEVER | - | |
| 6 | 32 72 7 673 919 | DUST PROTECTION COLLAR | - | |
| 7 | 32 72 8 534 340 | COUNTERSUNK HEAD SCREW | - | |
| 8 | 32 72 7 680 378 | SELF-LOCKING HEX NUT - M5-A2-70 | - | |
| 9 | 32 72 8 532 971 | PIPE CLAMP | - | |
32 72 8 358 420 | PIPE CLAMP RIGHTAlternative for position 9 | - | ||
| 10 | 07 12 9 907 400 | ISA SCREW - M6X30-8.8-ZNNIV | - | |
| 11 | 32 72 9 829 546 | BRAKE LEVER - SHADOW | - | |
32 72 8 405 750 | BRAKE LEVER - STORMAlternative for position 11 | - | ||
32 72 8 405 749 | BRAKE LEVER - CLASSICAlternative for position 11 | - | ||
| 12 | 32 72 7 923 888 | LID BRAKE FLUID RESERVOIR - SHADOW | - | |
32 72 7 923 884 | COVER PANEL FOR BRAKE FLUID RESERVOIR - STORMAlternative for position 12 | - | ||
32 72 7 923 882 | COVER PANEL FOR BRAKE FLUID RESERVOIR - CLASSICAlternative for position 12 | - |
