R1250GS 21 (K50) | Steering

CLUTCH CONTROL ASSEMBLY

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

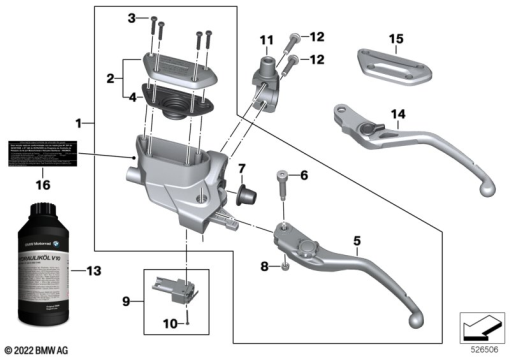

Diagram #32_2192 | 29 parts

100%

Parts List (29)

#	Part Number	Description	Qty
1	32 72 8 524 919	CLUTCH CONTROL ASSEMBLY	-
	32 72 8 524 919	CLUTCH CONTROL ASSEMBLYAlternative for position 1	-
	32 72 8 406 762	CLUTCH LEVER - CLASSICAlternative for position 1	-
	32 72 8 406 765	COVER - CLASSICAlternative for position 1	-
	32 72 8 524 919	CLUTCH CONTROL ASSEMBLYAlternative for position 1	-
	32 72 8 406 763	CLUTCH LEVER - STORMAlternative for position 1	-
	32 72 8 406 766	COVER - STORMAlternative for position 1	-
	32 72 8 524 919	CLUTCH CONTROL ASSEMBLYAlternative for position 1	-
	32 72 9 829 325	CLUTCH LEVER - SHADOWAlternative for position 1	-
	32 72 9 829 326	COVER - SHADOWAlternative for position 1	-
2	32 72 8 525 819	SET: SET OF CAPS, FLUID RESERVOIR, CLUTCH	-
3	32 72 8 534 149	PT SCREW - 4X22	-
4	32 72 8 532 966	BOOT	-
5	32 72 8 525 826	CLUTCH LEVER	-
6	32 72 8 532 968	COUNTERSUNK HEAD SCREW	-
7	32 72 7 673 919	DUST PROTECTION COLLAR	-
8	32 72 7 680 378	SELF-LOCKING HEX NUT - M5-A2-70	-
9	32 72 8 537 609	SET: SET OF DUAL MICROSWITCHES	-
10	32 72 8 532 974	PT SCREW - 2X22	-
11	32 72 8 532 971	PIPE CLAMP	-
	32 72 8 534 366	PIPE CLAMP LEFTAlternative for position 11	-
12	07 12 9 907 400	ISA SCREW - M6X30-8.8-ZNNIV	-
13	21 52 2 455 540	TRANSMISSION OIL HYSPIN V10 - 250 ML	-
14	32 72 8 406 762	CLUTCH LEVER - CLASSIC	-
	32 72 8 406 763	CLUTCH LEVER - STORMAlternative for position 14	-
	32 72 9 829 325	CLUTCH LEVER - SHADOWAlternative for position 14	-
15	32 72 8 406 765	COVER - CLASSIC	-
	32 72 8 406 766	COVER - STORMAlternative for position 15	-
	32 72 9 829 326	COVER - SHADOWAlternative for position 15	-
