R1250GS 21 (K50) | Service Items

ENGINE OIL / MAINTENANCE SERVICE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #02_0101 | 36 parts

100%

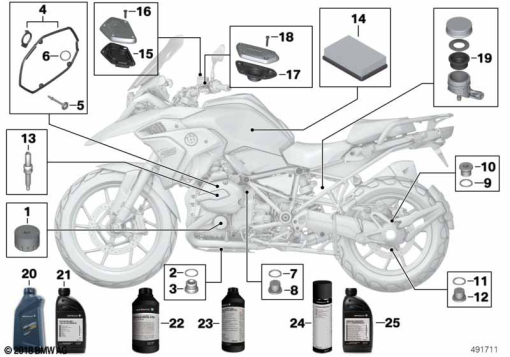

R1250GS 21 (K50) ENGINE OIL / MAINTENANCE SERVICE exploded view parts diagram

Parts List (36)

#	Part Number	Description	Qty
1	11425B70298	OIL FILTER	1
1	11 42 7 721 779	OIL FILTER	1
2	07 11 9 963 340	GASKET RING - A20X24-AL	1
3	11 11 8 530 317	SCREW PLUG, MAGNETIC - M20X1,5	1
4	11 12 9 899 381	SET OF GASKETS	1
5	11 12 8 523 552	SCREW WITH BUSH	1
6	07 11 9 904 950	O-RING - 27X3,2	1
7	07 11 9 963 252	GASKET RING - A16X20-AL	1
8	07 11 9 902 292	SCREW PLUG - M16X1,5	1
9	07 11 9 963 132	GASKET RING - A12X16-CU	1
10	07 11 9 904 550	SCREW PLUG - M12X1,5-ZNNIV	1
11	33 11 7 695 219	O-RING - 11,2X1,8	1
12	33 11 7 705 854	OIL DRAIN PLUG - M12X1-ZNNIVSI	1
13	12 12 8 560 811	SPARK PLUG - NGK LMAR8AI-10	1
14	13 72 7 726 799	AIR FILTER ELEMENT	1
15	32 72 8 532 636	BOOT	1
16	32 72 7 681 032	COUNTERSUNK SCREW - ISA M4X16 A2-70	1
17	32 72 8 532 966	BOOT	1
18	32 72 8 534 149	PT SCREW - 4X22	1
19	32 72 7 722 873	BOOT	1
20	83 21 2 365 958	MOTOR OIL ADVANTEC 5W-40 - 1L	1
21	83 22 2 460 128	HYPOID AXLE OIL G3 - 0,5L	1
21	83 22 2 471 423	HYPOID AXLE OIL G3 - 60L	1
21	83 22 2 471 424	HYPOID AXLE OIL G3 - 1000ML, TU	1
22	21 52 2 455 540	TRANSMISSION OIL HYSPIN V10 - 250 ML	1
23	83 51 2 445 463	RADIATOR/ANTIFREEZE/ANTI-CORROSION AGENT - 1,5L (to 09/13)	1
23	83515A87B45	RADIATOR ANTIFREEZE - 1,5L (to 09/13)	1
23	83 51 2 355 290	ANTI-FREEZE - 1,5L (to 03/22)	1
23	83515A6CDD7	RADIATOR ANTIFREEZE - 1,5 LITER	1
23	83515A6CDD8	RADIATOR ANTIFREEZE - 60 LITER	1
24	83195A23100	BRAKE CLEANER, ACETONE-FREE - 500ML	1
24	83195A260A8	BRAKE CLEANER, ACETONE-FREE - 500ML	1
25	83 13 2 445 461	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 01/23)	1
25	83105A87362	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L	1
25	83 13 2 467 961	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 01/23)	1
25	83105A87361	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML	1
