R1250GS 21 (K50) | Service Items

BRAKE SERVICE

Diagram #02_0203 | 33 parts | 1 available in shop

100%

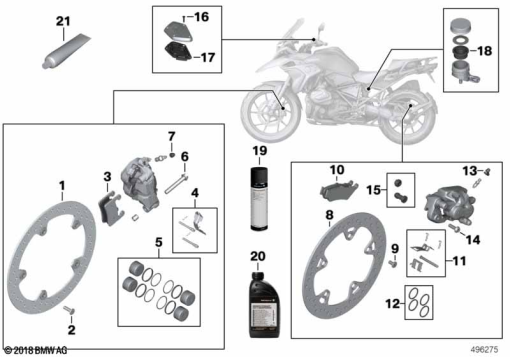

R1250GS 21 (K50) BRAKE SERVICE exploded view parts diagram

Parts List (33)

#Part NumberDescriptionQty
1
34 11 8 526 566
BRAKE ROTOR WITH RIVET - D=305-4,5MM1
10
34 11 7 700 989
COUNTERSUNK SCREW - M8X27-10.9 MK1
2
34 11 7 700 989
COUNTERSUNK SCREW - M8X27-10.9 MK1
3
34 11 8 405 104
SET: OF BRAKE PADS FRONT - HAYES1
3
83 12 2 296 187
Brake Pad Paste - 5 ml1
4
34 11 8 405 105
SET: OF MOUNTING PARTS, BRAKE PADS - HAYES1
5
34 11 1 603 465
SET: OF BRAKE PISTONS WITH SEALS - HAYES1
6
34 11 7 719 823
HEXAGON-HEAD BOLT WITH SHANK - M10X65-8.81
7
34 21 2 314 001
34 21 2 314 0012
8
34 21 8 526 568
REAR BRAKE DISC1
5
33 17 7 709 205
TORX SCREW - M8X15,5-MK-ZNS31
9
33 17 7 709 205
TORX SCREW - M8X15,5-MK-ZNS31
10
34 21 8 562 163
SET: SET OF BRAKE PADS, SINTERED METAL1
10
83 12 2 296 187
Brake Pad Paste - 5 ml1
1
34 21 8 535 157
SET: SET OF MOUNTING PARTS, BRAKE PADS1
11
34 21 8 535 157
SET: SET OF MOUNTING PARTS, BRAKE PADS1
12
34 21 7 674 607
SET OF BRAKE CALIPER PISTON SEALS - D=28MM1
13
34 21 2 314 001
34 21 2 314 0011
14
46 63 9 908 452
FILLISTER-HEAD SCREW - M8X30-8.8-MK1
15
34 21 2 330 312
REPAIR KIT, RUBBER COVER1
16
32 72 8 543 109
COUNTERSUNK SCREW - M4X16 ZNNIV1
17
32 72 8 532 636
BOOT1
18
32 72 7 722 873
BOOT1
19
83 19 2 445 462
BRAKE CLEANER 2.0 - 500ML (to 09/20)1
19
83195A23100
BRAKE CLEANER, ACETONE-FREE - 500ML1
19
83 19 2 406 954
BRAKE CLEANER 2.0 - 500ML (to 07/20)1
19
83195A260A8
BRAKE CLEANER, ACETONE-FREE - 500ML1
20
83 13 2 445 461
BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 01/23)1
20
83105A87362
BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L1
20
83135A824F1
BRAKE FLUID DOT4, LOW-VISCOSITY EU - 60L1
20
83 13 2 467 961
BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 01/23)1
20
83105A87361
BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML1
21
83 19 2 158 852
BRAKE PAD PASTE - 100G1
