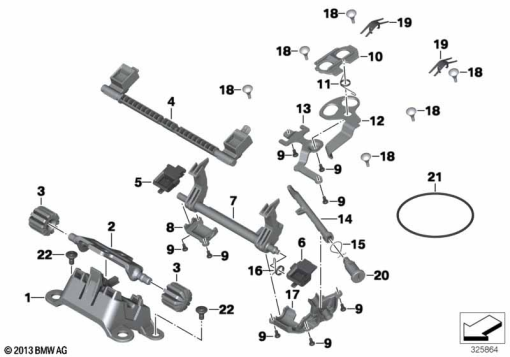

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 8 532 741 | BASEPLATE FOR SEAT ADJUSTMENT | - | |
| 2 | 52 53 8 532 742 | ADJUSTING PLATE FOR SEAT, FRONT | - | |
| 3 | 16 11 2 323 615 | BUMP STOP | - | |
| 4 | 52 53 8 533 654 | ADJUSTMENT BLOCK, BENCH SEAT | - | |
| 5 | 52 53 8 533 656 | RUBBER INSULATOR, SEAT BEARING, FR.RIGHT | - | |
| 6 | 52 53 8 533 655 | RUBBER INSULATOR, SEAT BEARING, FR. LEFT | - | |
| 7 | 52 53 8 533 653 | ENGAGEMENT HOOK | - | |
| 8 | 46 62 8 533 652 | COVER FOR RETAINING HOOK, RIGHT | - | |
| 9 | 07 14 7 118 899 | SCREW FOR THERMOPLASTIC PLASTICS - 4X10 T20 | - | |
| 10 | 46 62 8 533 647 | CENTERING PLATE FOR PASSENGER SEAT | - | |
| 11 | 46 62 8 533 649 | SPRING FOR LOCKING PLATE | - | |
| 12 | 46 62 8 533 643 | LOCKING PLATE FOR PASSENGER SEAT | - | |
| 13 | 46 62 8 533 648 | CLAMP BRACKET FOR PASSENGER SEAT | - | |
| 14 | 52 53 8 533 650 | CLOSING SHAFT | - | |
| 15 | 46 62 8 532 322 | SPRING FOR LOCK ROD ON BENCH SEAT | - | |
| 16 | 46 62 8 533 641 | SPRING FOR RETAINING HOOK, RIDER SADDLE | - | |
| 17 | 46 62 8 533 651 | COVER FOR LOCK SHAFT | - | |
| 18 | 52 53 7 703 580 | RUBBER SUPPORT | - | |
| 19 | 46 62 8 532 323 | LEAF SPRING MOUNT FOR SEAT, REAR | - | |
| 20 | 51 25 7 681 200 | LOCK CYLINDER WITH VIN CODE | - | |
| 21 | 07 11 9 909 725 | O-RING - 5X3,5-N-EPDM70 | - | |
11 50 8 568 849 | O-RING - 50X3-N-EPDM70Alternative for position 21 | - | ||
| 22 | 46 63 8 521 656 | BODY SCREW WITH SHOULDER - M6X14,5-A2-70 | - |
