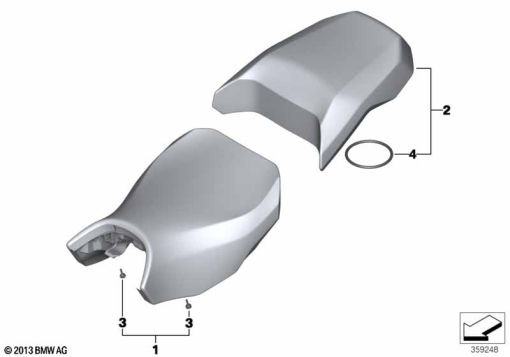

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 8 532 737 | DRIVERS SEAT, BLACK - 850MM | - | |
52 53 9 457 786 | RIDERS SEAT COMFORT HIGH HEATEDAlternative for position 1 | - | ||
52 53 8 532 738 | DRIVERS SEAT, BLACK, LOW - 820MMAlternative for position 1 | - | ||
52 53 9 457 789 | RIDERS SEAT COMFORT LOW HEATEDAlternative for position 1 | - | ||
52 53 8 532 738 | DRIVERS SEAT, BLACK, LOW - 820MMAlternative for position 1 | - | ||
52 53 9 457 789 | RIDERS SEAT COMFORT LOW HEATEDAlternative for position 1 | - | ||
52 53 8 532 737 | DRIVERS SEAT, BLACK - 850MMAlternative for position 1 | - | ||
52 53 8 532 737 | DRIVERS SEAT, BLACK - 850MMAlternative for position 1 | - | ||
| 2 | 52 53 8 564 242 | PASSENGER SEAT - BLACK | - | |
52 53 9 457 781 | PASSENGER SEAT, BLACK, HEATEDAlternative for position 2 | - | ||
52 53 9 457 781 | PASSENGER SEAT, BLACK, HEATEDAlternative for position 2 | - | ||
| 3 | 52 51 2 328 424 | DISTANCE RUBBER | - | |
| 4 | 07 11 9 909 725 | O-RING - 5X3,5-N-EPDM70 | - | |
11 50 8 568 849 | O-RING - 50X3-N-EPDM70Alternative for position 4 | - |
