R1250GS 21 (K50) | Rear Axle & Suspension

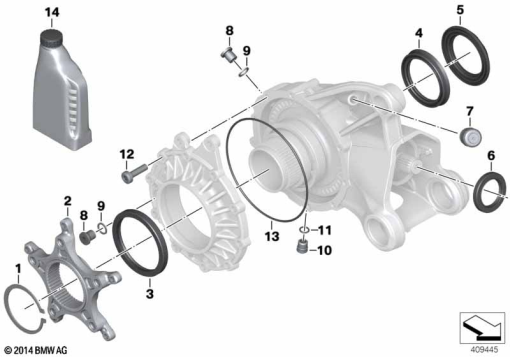

RIGHT-ANGLE GEARBOX, SINGLE PARTS
Diagram #33_1716 | 17 parts
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 905 076 | LOCK RING - 62X2 | - | |
| 2 | 33 76 9 467 987 | FLANGE | - | |
| 3 | 33 75 8 529 958 | SHAFT SEAL - 75X90X9 | - | |
| 4 | 33 75 8 529 957 | SHAFT SEAL - 59,8X75X7,5 | - | |
| 5 | 33 76 8 529 752 | COVER | - | |
| 6 | 33 75 8 529 959 | SHAFT SEAL - 35X52X7 | - | |
| 7 | 23 00 7 693 739 | BREATHER (to 01/23) | - | |
33 74 8 864 458 | BREATHERAlternative for position 7 | - | ||
| 8 | 07 11 9 904 550 | SCREW PLUG - M12X1,5-ZNNIV | - | |
| 9 | 07 11 9 963 132 | GASKET RING - A12X16-CU | - | |
| 10 | 33 11 7 705 854 | OIL DRAIN PLUG - M12X1-ZNNIVSI | - | |
| 11 | 33 11 7 695 219 | O-RING - 11,2X1,8 | - | |
| 12 | 33 74 8 553 623 | COUNTERSUNK SCREW - M8X30 8.8 ZNS3 | - | |
| 13 | 33 11 7 695 218 | O-RING - 138X2,62 | - | |
| 14 | 83 22 2 460 128 | HYPOID AXLE OIL G3 - 0,5L | - | |
83 22 2 471 423 | HYPOID AXLE OIL G3 - 60LAlternative for position 14 | - | ||
83 22 2 471 424 | HYPOID AXLE OIL G3 - 1000ML, TUAlternative for position 14 | - |
