R1250GS 21 (K50) | Rear Axle & Suspension

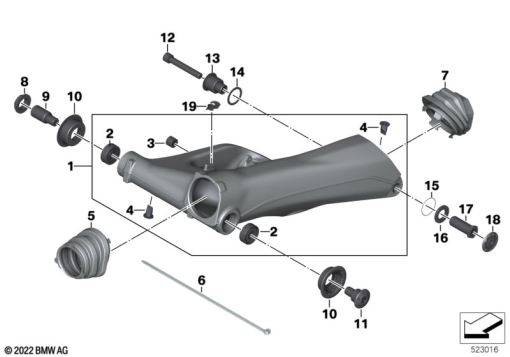

REAR WHEEL SWINGING ARM
Diagram #33_3099 | 22 parts | 4 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 17 7 105 976 | REAR WHEEL SWINGING ARM, BLACK | 1 | |
| 1 | 33355A65AB4 | PIVOT PIN | 1 | |
| 1 | 07 12 9 907 075 | FILLISTER-HEAD SCREW - M12X80-10.9-MK | 1 | |
| 2 | 33 17 2 311 729 | TAPERED ROLLER BEARING - 17X40X13,25 | 1 | |
| 3 | 33 35 8 532 150 | BUSH | 1 | |
| 4 | 33 17 8 358 789 | VENTILATION VALVE | 1 | |
| 5 | 33 35 8 556 597 | RUBBER BOOT | 1 | |
| 6 | 33 17 7 687 623 | CABLE TIE | 1 | |
| 7 | 33 35 7 708 117 | RUBBER BOOT | 1 | |
| 8 | 33 17 2 335 111 | COLLAR NUT - M24X1,25-ZNNIV | 1 | |
| 9 | 31 44 7 675 977 | PIVOT PIN - M24X1,25 | 1 | |
| 10 | 33 35 8 533 306 | ANTI-SCUFFING | 1 | |
| 11 | 33 35 8 526 710 | PIVOT PIN | 1 | |
| 12 | 07 12 9 907 075 | FILLISTER-HEAD SCREW - M12X80-10.9-MK | 1 | |
| 13 | 33 17 7 665 148 | PIVOT PIN | 1 | |
| 14 | 33 11 7 684 996 | GASKET RING - 38X30X2,5 | 1 | |
| 15 | 07 11 9 904 693 | O-RING - 34X1 | 1 | |
| 16 | 33 35 8 533 293 | SPACER RING | 1 | |
| 17 | 33 17 8 375 112 | PIVOT PIN | 1 | |
| 17 | 33355A65AB4 | PIVOT PIN | 1 | |
| 18 | 33 35 8 529 484 | COVERING CAP | 1 | |
| 19 | 33 54 8 543 177 | GUIDE | 1 |
