R1250GS 21 (K50) | Rear Axle & Suspension
PARALEVER BRACE

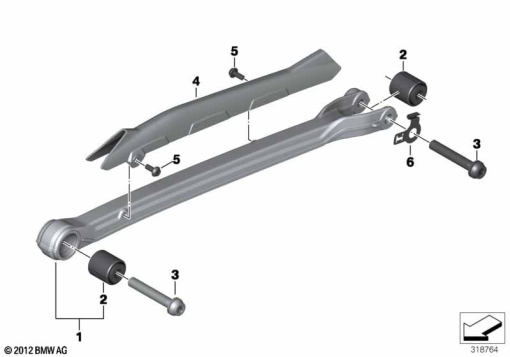

Diagram #33_1714 | 6 parts | 3 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 35 7 914 914 | PARALEVER BRACE, BLACK | 1 | |
| 2 | 33 17 8 543 509 | RUBBER MOUNTING | 1 | |
| 3 | 33 35 8 533 524 | FILLISTER-HEAD SCREW - M10X60-U0-10.9 | 1 | |
| 4 | 34 32 8 526 533 | BRAKE HOSE GUIDE | 1 | |
| 5 | 07 12 9 907 413 | TORX SCREW - M5X12-8.8-ZNNIV | 1 | |
| 6 | 34 52 8 532 554 | CABLE GUIDE | 1 |
