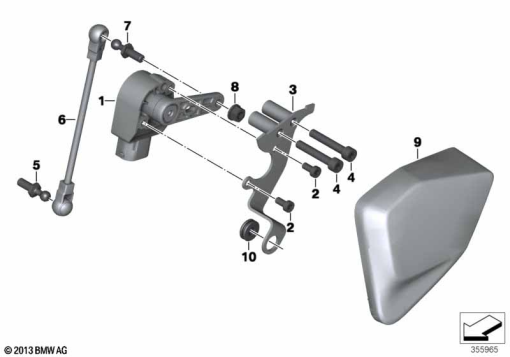

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37 14 6 870 000 | LEVEL SENSOR | - | |
| 2 | 07 12 9 904 491 | ISA SCREW - M5X10 | - | |
| 3 | 33 54 8 559 145 | HOLDER | - | |
| 4 | 07 12 9 905 944 | SCREW - M6X35 | - | |
| 5 | 31 48 8 550 097 | BALL PIN - M6X11 | - | |
| 6 | 33 54 8 528 804 | PUSH ROD | - | |
| 7 | 31 48 8 531 365 | BALL PIN, TOP - M6X14-ZNNIV-MK | - | |
| 8 | 07 12 9 904 553 | HEX NUT WITH PLATE - AM6-8-ZNNIV SI | - | |
| 9 | 33 54 8 522 942 | COVER | - | |
| 10 | 16 11 2 328 784 | GROMMET | - |
